Formlabs Form 4B 3D Printer Bundle
Form 4B - A generational leap in medical and dental 3D printing
Formlabs introduces the Form 4B, a new generation machine designed specifically for medical and dental applications, with upgraded speed, reliability, and biocompatibility. With the Form 4B system, turn your medical ideas into reality faster than ever before through a simple workflow, leading reliability, and stunning part quality.
The Form 4B is powered by Formlabs' new Low Force Display™ print engine, a powerful combination of ultra-high power LEDs, collimating lenses, filters, and a robust liquid crystal display. They rapidly cure each layer of resin—regardless of part size or quantity. With tight tolerances, parts printed with every resin on the Form 4B will always match your design parameters.

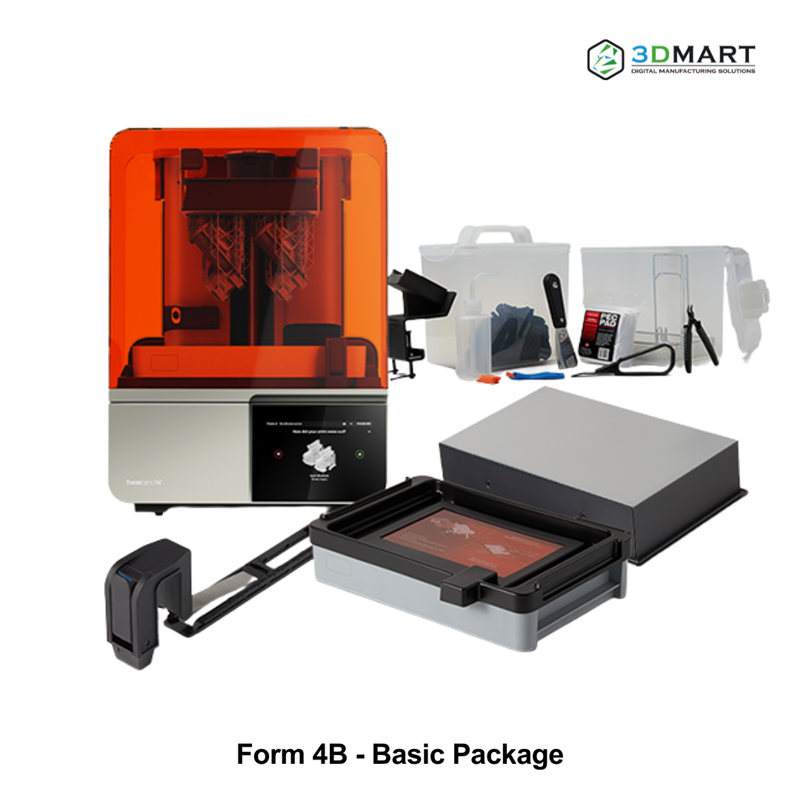

Form 4B - Basic Package
- Form 4B Printer
- Form 4 Resin Tank
- Form 4 Mixer
- Form 4 Flex Build Platform
- Form 4 Finish Kit
- Open Material Mode for Form 4B

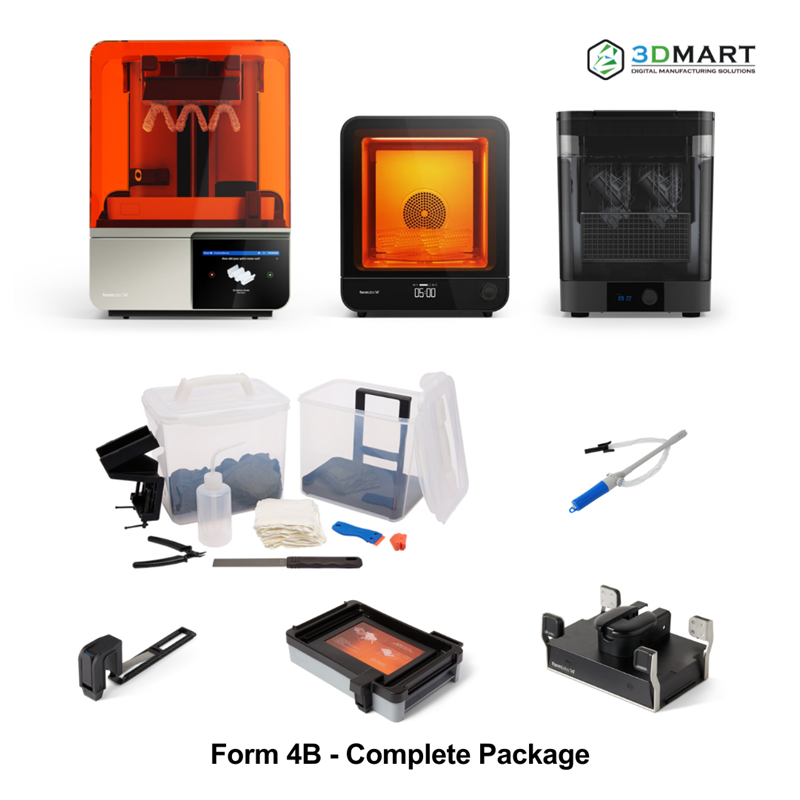

Form 4B - Complete Package
- Form 4B Printer
- Form 4 Resin Tank
- Form 4 Mixer
- Form 4 Flex Build Platform
- Form 4 Finish Kit
- Form Wash V2
- Form Cure V2 120V
- Solvent Pump
- Form 4B Dental and Medical Service Plan 3 Years
- Open Material Mode for Form 4B
Form 4B - Package Comparison
| Basic Package | Complete Package |
|---|---|
|
|

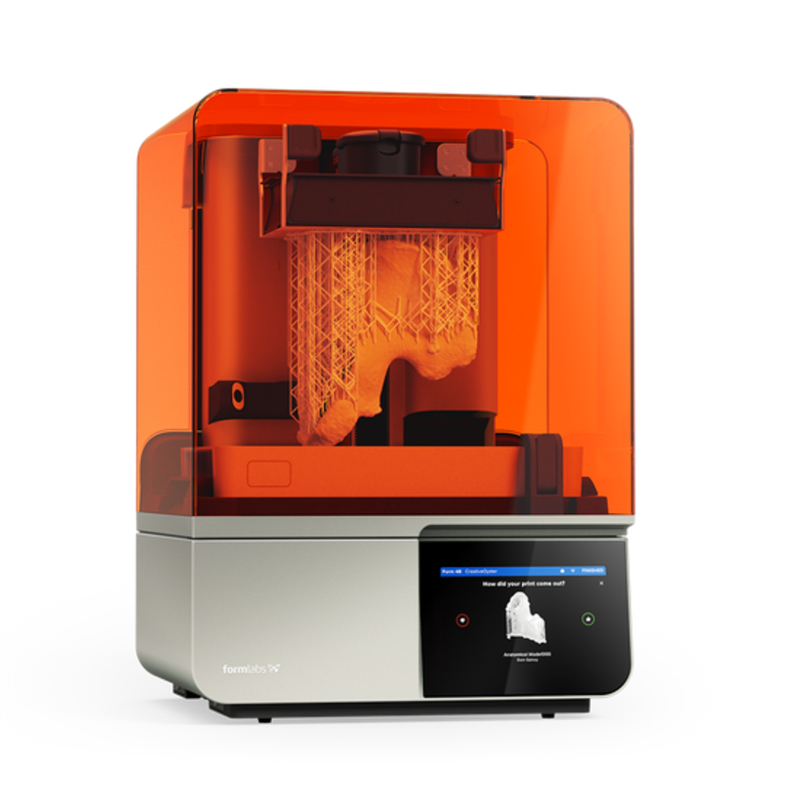

Form 4B - Product Overview Blazing Fast Printing, Breaking Through Production Limits
Surgical sizing trial - restor3d
The Form 4B prints 4 times faster than its predecessor, with a 30% increase in build volume. Whether printing single parts or batch production, it can be completed in a very short time, significantly improving the work efficiency of medical institutions and laboratories.
Consistent Accuracy

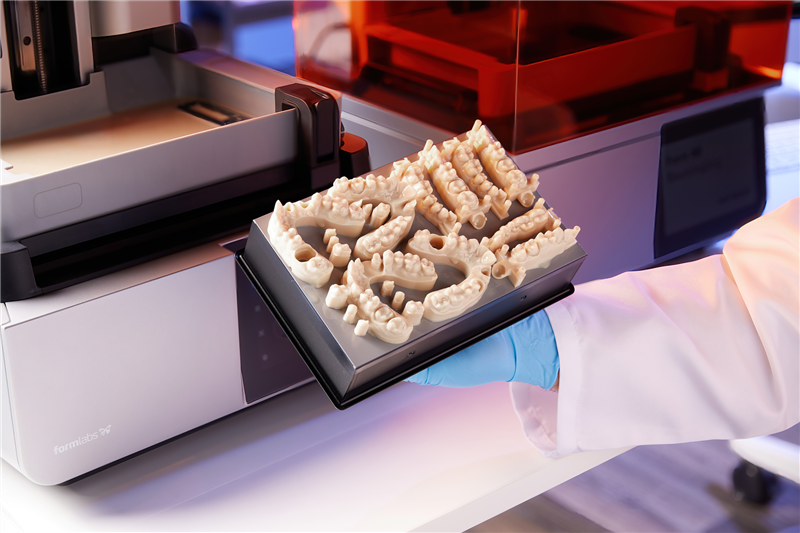

Equipped with 50μm pixel size and pre-tuned anti-aliasing, the Form 4B delivers extremely smooth surfaces and clear details, meeting the highly demanding precision requirements of medical applications such as surgical guides and anatomical models.
Unmatched Reliability
Third-party lab verified, the Form 4B boasts a print success rate of up to 98.7%. With 6 upgraded built-in sensors, it precisely controls resin temperature, level, and print force, ensuring every print is flawless.
👉Learn more about Formlabs 3D Printing Resins
Learn more about Formlabs products
- Contact Us -
3DMart offers more than just 3D printing; we provide three major contract services: "3D Printing Services," "3D Scanning Services," and "Spatial 3D Scanning Services"!!
Follow our fan pages to stay updated:
Facebook | Instagram | Threads
Product Specifications
| Technology | Masked Stereolithography (MSLA) |
|---|---|
| Printer Engine | Low Force Display (LFD)™ |
| Key Components of the Print Engine | · Backlight Unit · Light Processing Unit 4 (LPU 4) · Release Texture · Flexible Film Resin Tank · Intelligent Control Systems · High-Speed Automatic Resin Handling |
| Light Source | · Backlight Module: 60 uniformly-wavelength LEDs, plano-convex lens array, and integrated air cooling · 405nm light wavelength · 16mW/cm² optical power intensity (illuminating the print plane) · 50µm pixel size |
| Build Volume (W × D × H) | 20.0 × 12.5 × 21.0 cm 5.25 liters |
| Build Area | 250 cm² |
| Max Part Length⁶ | 27.3 cm |
| Maximum Print Speed | 100mm/h |
| Average Print Speed (100µm layer height) | · Average: 40mm/h (all materials) · Range: 16–50mm/h (material dependent) |
| Typical Dimensional Tolerance³ | · 1–30mm features: ±0.15% (lower bound: ±0.02mm) · 31–80mm features: ±0.2% (lower bound: ±0.06mm) · 81–150mm features: ±0.3% (lower bound: ±0.15mm) |
| Print Layer Thickness | 25–200 µm |
| Horizontal Accuracy | Pre-tuned anti-aliasing with 50µm sub-pixel resolution Improved fine and sharp features compared to Form 3 series |
| Resin Tank Lifespan | 75,000+ layers (any Formlabs material), e.g., approximately 340 prints using clear aligner models (22mm height), any resin, and 100µm layer height settings |
| Resin Cartridge Type | Next-generation resin cartridge 5–10x faster filling; 63% less waste; 30% less shelf space |
| Resin Heating | High-speed conductive resin heating with infrared temperature sensing |
| Internal Temperature | Automatically heats resin to 25–45°C, depending on material |
| Force Sensing | Z-axis force sensor: automatically optimizes print quality and speed based on part geometry and selected material. |
| Supports | Auto-generated, touch-removable |
| Biocompatible Materials | Supported |
| Materials | 38 industry-leading Formlabs materials (including 15 biocompatible materials), or use third-party materials with Open Material Mode. More exciting new materials are currently under development. |
| Printer Weight | 18.3kg |
| Printer Dimensions | 39.8 × 36.7 × 55.4cm |
| Minimum Operating Dimensions (W × D × H) | 40.7 × 47.8 × 84.4cm |
| Operating Environment | 18–28 °C |
| Power Requirements | 100–240 VAC 4.8 A 50/60 Hz 480 W |
| Connectivity | Wi-Fi (2.4 and 5 GHz; IEEE 802.11 b/g/n/ac, WPA/WPA2) Ethernet (1000 Mbit) USB-C 2.0 |
| Printer Control⁹ | 7" interactive touchscreen 1280 × 800 resolution Languages: English, German, French, Spanish, Italian, Japanese, Simplified Chinese |
| Camera | Integrated camera 2592 × 1944 resolution (5MP) Remote monitoring, print history, and time-lapse printing Can be easily disabled, covered, or removed |
| Sensors and Control System | 6 upgraded sensors for precise control of resin temperature, resin level, print force, and print status: High-speed conductive resin heating with infrared temperature sensing Ultrasonic resin level sensor: controls the amount of resin in the resin tank Z-axis force sensor: controls and minimizes print force Resin cartridge load sensor: precisely measures the resin level in the resin cartridge Printer leveling sensor Camera |
| Software | PreForm, Dashboard |
| PreForm Compatibility | Windows 10 (64-bit only, ARM not supported) and later macOS 13 or later OpenGL 2.1 Microsoft C++ Redistributable (Windows only) 4GB RAM (8GB recommended) |
| PreForm Acceptable File Types | STL, OBJ, and 3MF file input FORM file output |
