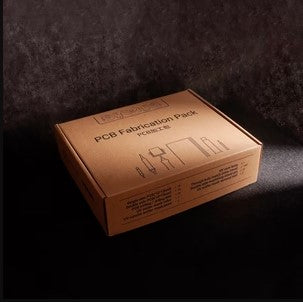

The Makera PCB Fabrication Kit
Turn your Carvera CNC machine into a professional PCB factory! Whether you are a beginner or experienced, this all-in-one kit makes it easy to create professional and user-friendly circuit boards.
Apply Solder Mask
Solder mask gives your PCBs a better look and makes soldering easier. Makera provides a simple and elegant way to apply solder mask to your boards, complete with special spring-loaded milling tools for subsequent removal.
Laser Engrave Silkscreen
Using the Carvera's built-in laser module, you can easily engrave silkscreens onto the solder mask, making your PCBs more professional and user-friendly.
Fabricate Double-Sided PCBs
Double-sided PCB fabrication can be challenging; Makera provides an all-in-one solution with step-by-step tutorials to help you complete double-sided circuit boards with ease.
Software Solution
The Gerber-to-CAD converter developed by Makera allows you to use VCarve Desktop or other familiar CAM software directly, without needing to switch between different applications.
Kit Contents:
- UV Curable Solder Mask Paint × 5
- UV Solder Mask Roller × 1
- 1/8" 60-degree 0.1mm V-bit × 2
- 1/8" 30-degree 0.2mm V-bit × 2
- UV Solder Mask Removal Tool × 2
- Double-sided Machining Bolts × 20
- PCB Milling/Drilling Bits × 20
- Through-hole Rivets (0.2 - 1mm) × 1000
- Single-sided PCB (10×15 cm) × 10
- Double-sided PCB (10×15 cm) × 10
- UV Curing Lamp × 1
Contact us to learn more about Makera accessories and CNC machines!
